Single cabinet/single row micro module Data Center

Basic Features

Efficient and energy-saving

●The front and rear cold channels of the cabinet are closed to improve the cooling efficiency of the air conditioning.

●Variable frequency compressor, matched with load size, reduces overall energy consumption.

Stable and reliable

● Support N+1/2N design to ensure stable operation of IT equipment.

●Emergency fans serve as emergency cooling.

●Stable operation of ultra wide voltage input, with phase sequence detection and other electrical guarantees.

Source protection function.??????????????????????????????????????????????????????

● Intelligent call self start function. Flexible and diverse

● Low temperature components or long connected pipe components can be selected to ensure reliable operation of the unit in more severe on-site conditions.

Fast delivery speed

●Factory prefabricated, quick on-site splicing, plug and play.

●Standard modular construction, easy deployment, and quick deployment,

The later expansion will not affect each other, and the delivery target speed will increase by?50%.

Intelligent control

●Local display on a 10 inch large touch screen, not occupying the U position.

●Can manage intelligent devices such as UPS, air conditioning, power distribution, and temperature and humidity

Non intelligent devices such as temperature sensors, smoke detectors, and access control.

●Through the WEB interface, remote comprehensive monitoring of unmanned computer rooms can be achieved, ensuring stable and reliable remote monitoring of the computer room to achieve unmanned or few people on duty, providing strong guarantees for efficient management and safe operation of the computer room.

Flexible and diverse

●The cabinet is the computer room and can be flexibly placed.

●The standard configuration is a dual closed cold and hot channel, or a single closed cold channel.

Single row micro module classification

● Single cabinet

● Single row multi cabinet

Naming rules

Single row micro module standard configuration

System	Model	Control ? Cabinet	IT cabinet	Battery ? Cabinet	Battery ? position	Battery ? capacity	UPS Power	Cooling Power	Total cabinet ? positions
Single cabinet	Lx-MD31R103J103U-12	1	0	0	Internal	12V9Ah×6	3kVA×1	3.5kW×1/ Rack	1
1+1	Lx-MD32R105J106U-12	1	1	0	Internal	12V9Ah×16	6kVA×1	5kW×1/ Rack	2
1+2	Lx-MD33R107J110U-12	1	2	0	Internal	12V9Ah×16	10kVAx1	7.5kW×1/ Rack	3
1+3	Lx-MD34R112J120U-12	1	3	0	Internal	12V40Ah×16	20kVA×1	12.5kW×1/ Rack	4
1+4	Lx-MD35R112L120U-12	1	4	0	Internal	12V65Ah×16	20kVAx1	12.5kW×1/ Inter column	6
1+4	Lx-MD35R112L120U-12C	1	4	1	External	12V10OAh×16	20kVA×1	12.5kW×1/ Inter column	7
1+5	Lx-MD36R115L120U-12	1	5	1	Internal	12V100Ah×16	20kVAx1	15kW×1/ Inter column	8
1+5	Lx-MD36R115L120U-12C	1	5	0	External	12V100Ah×16	20kVA×1	15kW×1/ Inter column	7
1+6	Lx-MD37R212L130U-12	1	6	2	Internal	12V100Ah×32	30kVA×1	12.5kW×2/ Inter column	11
1+6	Lx-MD37R212L130U-12C	1	6	0	External	12V10OAh×32	30kVA×1	12.5kW×2/ Inter column	9
1+7	Lx-MD38R212L130U-12	1	1	2	Internal	12V10OAh×32	30kVA×1	12.5kW×2/ Inter column	12
1+7	Lx-MD38R212L130U-12C	1	7	0	External	12V100Ah×32	30kVA×1	12.5kW×2/ Inter column	10

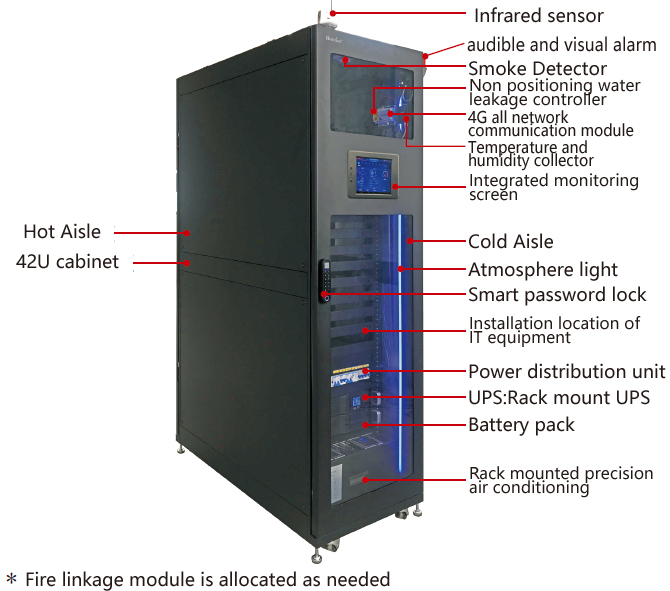

Single cabinet structure diagram

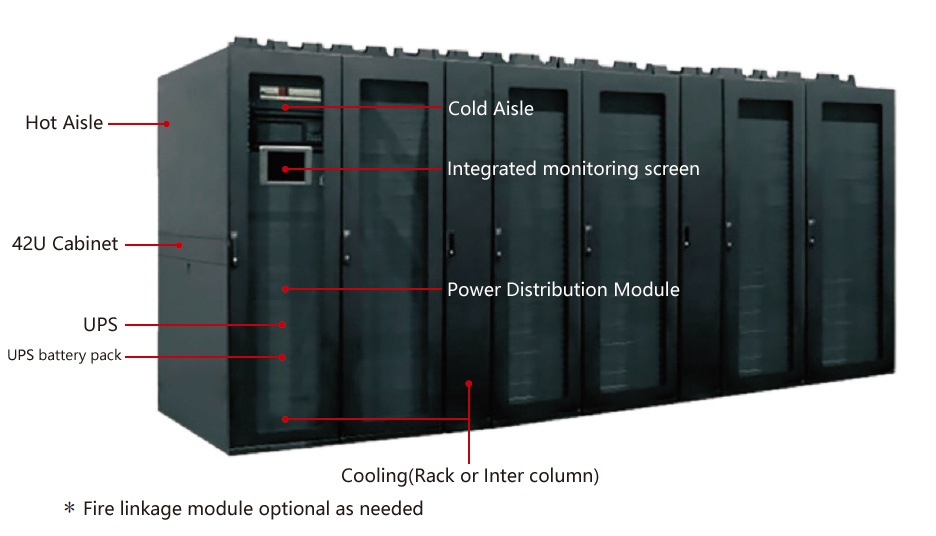

Single row multi cabinet structure diagram

Technical Specifications

Item		Description	System
			Single cabinet	1+1	1+2	1+3	1+4	1+5	1+6	1+7
Overall parameters		Power supply system	220V,50Hz，1Ph+N+PE			380V,50Hz,3Ph+N+PE
		Working Temperature	0~40℃
		Humidity range	5~95%
		Altitude	0~4000m(Reduce ? capacity for use ? above 1000m)
Cabinet System		Cabinet dimension:W×D×H(mm)	600×1200×2000
		Cabinet composition	Control ? cabinet+IT cabinet+air ? conditioning cabinet+battery cabinet (optional)
		Cold and hot channels	Cold ? and hot channels, double ? closed, cold channels, single closed
Device available space		Free space	42U×(N-1), the specific available space depends on the configuration.
Distribution system	System input	Input main switch	40A/2P	63A/2P	100A/2P	80A/3P			125A/3P
	System output	Output circuit	Configure according to user requirements
	UPS	Capacity	3kVA	6kVA	10kVA	20kVA			30kVA
		Configuration	Single UPS			Single/DualUPS
		Power Factor	0.8			0.9
		Efficiency	93% above
	PDU	Installation method	Vertical installation
		Type	National standard
		Configuration	32A，GB16×10A+4×16A
	Battery Pack	Capacity	9Ah
		QTY	0~4
	Backup	Backup mode	Battery pack/rack/cabinet
	Battery cabinet	Backup time	15 minutes to 4 hours, configured according ? to user requirements
Dynamic loop system		Integrated monitoring machine	10寸 touch screen
		SMS alarm	Optional
		Atmosphere light	standard configuration
		Audible and Visual Alarm	standard configuration
		Water immersion	standard configuration
		Temperature sensor	standard configuration
		Door contact	standard configuration
		Smoke Detector	standard configuration
		infrared	Optional
Cooling? system	Cooling	Refrigeration capacity	3.5kW×1	5kWx1	7.5kW×1	12.5kW×1	12.5kW×1	15kw×1	12.5kW×2	12.5kW×2
		Classification	Rack mounted variable frequency				Inter column frequency conversion

		Work Voltage	220V				380V
	Eemergency ventilation	Exhaust air volume(myh)	720	1440	2160	2880	3600	4320	5040	5760
		Work Voltage	220v
Dimension/GW		Package dimension:? W×D×H(mm)	734×1360×2200(unit)
		NW	140kg(Control Cabinet），100kg(IT Cabinet)
