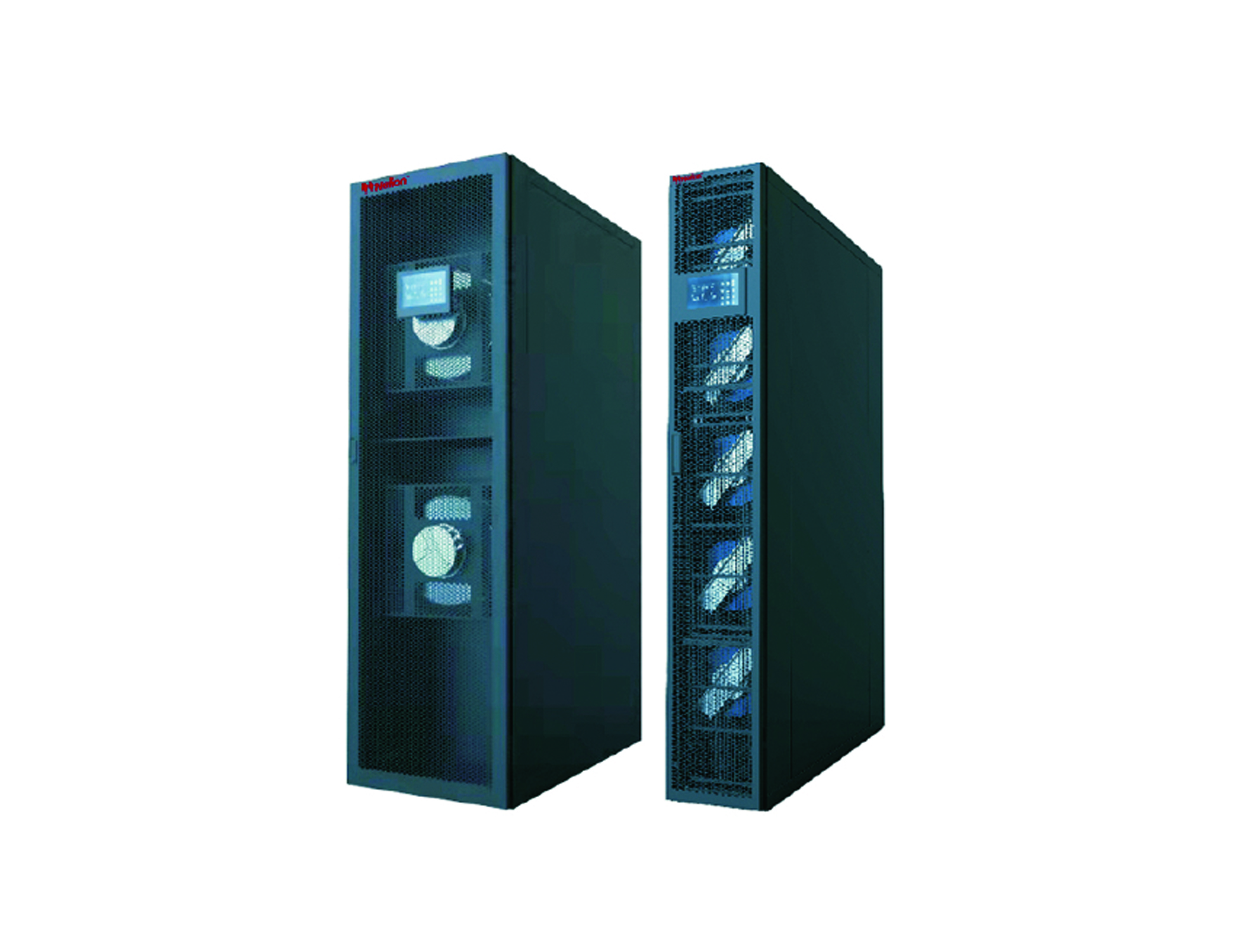

Double row micro module (inter row cooling)

Basic Features

The i-Row series precision cooling is designed specifically for high heat density machine rooms and micro module configurations. It can be cooled close to the heat source, reduce the distance between supply and return air, increase the return air temperature, and adjust the output according to load changes. It has the characteristics of high sensible heat ratio and high energy efficiency ratio. Fully variable frequency design, combined with electronic expansion valve to accurately adjust flow rate and adapt to different load changes. Achieve 30% -100% variable capacity output and precise temperature control. The 7-inch color touch screen realizes the display of the operating status of various components, and can achieve intelligent group control of 32 units, ensuring the stable operation of the entire module. Dynamically adjust the EC fan speed according to load changes, with multiple control methods available to ensure maximum energy saving in the system. Standard RS485 interface and water leakage alarm.

Technical Specifications

Parameters of ? cooling indoor unit between columns ? Model IRW-LA		12			25			40			50			60
Function		single cooling	single cooling+	constant ? temperature	single cooling	single cooling+	constant ? temperature	single cooling	single cooling+	constant ? temperature	single cooling	single cooling+	constant temperature	single cooling	single cooling+	constant ? temperature
			electric heating	constant ? humidity		electric heating	constant ? humidity		electric heating	constant humidity		electric heating	constant ? humidity		electric heating	constant ? humidity
Air supply mode		F/S			F/S			F			F			F
Input power supply form		380Vac/3ph/50Hz			380Vac/3Ph/50Hz			380Vac/3ph/50Hz			380Vac/3Ph/50Hz			380Vac/3Ph/50Hz
Cooling capacity (kw)		12.5	12.5	12.5	25	25	25	40	40	40	50	50	50	60	60	60
Apparent cooling? capacity?(kw)		12.5	12.5	12.5	25	25	25	40	40	40	50	50	50	60	60	60
Heating capacity?(kw)		一	2	2	—	3	3	一	6	6	一	6	6	一	6	6
Amount of? humidification (kg)		一	一	1	一	一	1.5	一	一	3	一	一	3	一	一	3
Form of compressor		variable ? frequency compressor			variable ? frequency compressor			variable ? frequency compressor			variable ? frequency compressor			variable ? frequency compressor
Form of refrigerant		R410A			R410A			R410A			R410A			R410A
Fan form		Dc EC ? centrifugal fan			Dc EC ? centrifugal fan			Dc EC ? centrifugal fan			Dc EC ? centrifugal fan			Dc EC ? centrifugal fan
Air volume m3/h		3200	3200	3200	5000	5000	5000	8800	8800	8800	11000	11000	11000	12500	12500	12500
External ? residual pressure Pa		The standard residual pressure is 20Pa, 0-400 Pa ? adjustable
Electric heating form		PTC electric ? heater			PTC electric ? heater			PTC electric ? heater			PTC electric ? heater			PTC Electric heater
Electric heating ? kw		-	2	2	-	3	3	-	6	6	-	6	6	-	6	6
Form of humidification		wet film ? humidifier			wet film ? humidifier			wet film ? humidifier			wet film ? humidifier			wet film ? humidifier
Maximum amount of? humidification kg/h		-	-	1.5	-	-	1.5	-	-	3	-	-	3	-	-	3
Form of throttling		electronic ? expansion valve			electronic ? expansion valve			electronic ? expansion valve			electronic ? expansion valve			electronic ? expansion valve
Air filter		G4 plate filter			G4 plate filter			G4 plate filter			G4 plate filter			G4 plate filter
Humidifier inlet pipe		G1/2			G1/2			G1/2			G1/2			G1/2
In the condensate drain (mm)		19			19			19			19			19
In the refrigerant pipe?(mm)		15.88			19.05			19.05			22			22
Refrigerant liquid pipe?(mm)		9.52			12.7			15.88			19.05			19.05
maximum operating current (A)		12	23	23	26	44	44	31	51	51	39	57	57	40	60	60
power cable specification (mm3)		5x2.5	5x4	5x4	5x4	5x6	5x6	5x4	5x10	5x10	5x6	5x10	5x10	5x6	5x10	5x10
Indoor machine coagulation parameters
Size:widthdepthheight (mm)		30ox1200x2000			300x1200x2000			600x1200x2000			60ox1200x2000			600x1200x2000
		30Ox140Ox2000
GW (kg)		190			230			285			310			330
Outdoor unit? model	Standard? type	CY0191-A1S			CY0451-A1S			CY0742-A1S			CY0893-A1S			CY0893-A1S
Number of? matches	pc	1			1			1			1			1
